Blast-Resistant Doors vs. Ballistic and Forced-Entry Doors
Understanding these differences is important when selecting a security door for a residence, safe room, commercial building, government facility, or other protected area.
For projects requiring forced-entry resistance, optional ballistic protection, and residential-quality finishes, explore our Embassy FE/5 and Fortress FE/15 security doors.
What Is a Blast-Resistant Door?A blast-resistant door is a specialized door and frame assembly designed to respond to the pressure, impulse, and debris generated by a defined explosive event.
A true blast-resistant opening involves more than a heavy steel door. The complete assembly must be evaluated, including:
|
Blast Resistant Door Example
|
Why a PSI Rating Is Not Enough
The performance of the opening can be affected by several factors:
- Peak blast pressure
- Duration of the pressure
- Blast impulse
- Explosive charge weight
- Distance between the explosion and the building
- Direction of the blast
- Size and configuration of the opening
- Acceptable level of door movement or damage
- Strength of the supporting wall and anchorage
Two explosive events can create a similar peak pressure while placing very different demands on the door because the pressure may act for different lengths of time. This is why blast-resistant assemblies should be selected from complete project-specific criteria rather than from a PSI number alone.
Blast Resistance, Ballistic Resistance, and Forced-Entry Resistance
Blast resistance addresses pressure and impulse created by an explosion. Depending on the project, the assembly may also be evaluated for debris hazards, acceptable deformation, and whether the door must remain operable after the event.
Blast-resistant openings are normally engineered around a defined threat and installation condition.
Ballistic resistance addresses penetration and potentially hazardous fragmentation caused by specified firearm ammunition.
Standards such as UL 752 evaluate products using defined projectiles, ammunition, velocities, shot patterns, and acceptance criteria. A ballistic rating applies only to the material or assembly represented by the applicable test documentation.
A bullet-resistant door is not automatically blast resistant.
Fortress Series ballistic test
|
Close-up of Fortress Series ballistic test
|
Close-up of Fortress Series ballistic test
|
Forced-entry resistance measures a door assembly’s ability to delay attackers using specified tools and attack methods.
Depending on the standard and classification, testing may include attacks involving pry bars, sledgehammers, axes, wedges, saws, drills, and other tools. Forced-entry ratings are intended to demonstrate how long a complete assembly can resist the attack methods defined by the applicable test procedure.
A forced-entry-resistant door is not automatically ballistic or blast resistant. Those protections must be separately tested, documented, and specified.
State Department Forced Entry 15 Testing
|

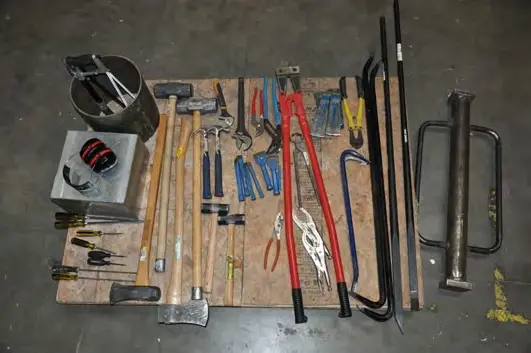

Tools Used For State Department Forced Entry 15 Testing
|
State Department Forced Entry 15 Testing
|
Protection-Type Comparison
Primary threat: Explosive pressure, impulse, and associated debris
Typical project information: Blast pressure, impulse, charge weight, standoff distance, damage level, opening size, anchorage, and supporting construction
Currently available from GSS Doors: No
Primary threat: Handgun or rifle fire
Typical project information: Required ballistic standard, protection level, ammunition threat, glazing requirements, and complete assembly documentation
Currently available from GSS Doors: Yes, in select Embassy and Fortress configurations
Primary threat: Skilled physical attack using hand tools or power tools
Typical project information: Required forced-entry standard, resistance time, door configuration, wall construction, locking system, and installation conditions
Currently available from GSS Doors: Yes, through the Embassy and Fortress Series
When Is a Blast-Rated Door Required?
Blast-resistant doors are commonly considered for applications such as:
- Military and government facilities
- Critical infrastructure
- Chemical and industrial facilities
- Research laboratories
- Utility and control buildings
- Certain data centers and communications facilities
- Buildings with a documented explosive threat
- Openings governed by project-specific antiterrorism or blast criteria
Many customers initially search for a blast door when their actual security concern is burglary, forced entry, armed attack, or protection of a safe room.
A GSS security door may be appropriate when the project requires:
- Resistance to skilled forced-entry attacks
- Protection against handgun or rifle threats
- Multi-point locking
- Automatic locking or access-control capability
- A secure panic-room or safe-room entrance
- A high-security residential entrance
- Decorative finishes suitable for a luxury residence
- A pre-hung security door and frame assembly
- Ballistic glazing in an applicable rated configuration
|
Embassy Series FE/5 Security Doors
The Embassy Series is intended for residential and commercial applications requiring substantial forced-entry protection without the heavier security level of the Fortress Series. The Embassy Series has been tested to the U.S. Department of State SD-STD-01.01, Revision G, FE/5 forced-entry standard. It has also achieved a Resistance Class 3, or RC3, classification under the applicable European forced-entry testing. Available Embassy Series features and options include:
Embassy Series Safe Room Door
|
Fortress Series FE/15 High-Security Doors
The Fortress Series is intended for projects with elevated threat levels or more demanding forced-entry requirements. The Fortress Series has been tested to the U.S. Department of State SD-STD-01.01, Revision G, FE/15 forced-entry standard. It has also achieved a Resistance Class 4, or RC4, classification under the applicable European forced-entry testing. Available Fortress Series features and options include:

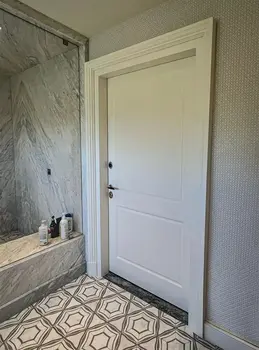

Fortress Series Safe Room Door
|
Selecting the Correct Security Door
1. Define the Primary Threat
Determine whether the concern is forced entry, handguns, rifles, blast pressure, or a combination of threats.
2. Identify the Required Standard
Ask whether the project requires a specific classification, such as FE/5, FE/15, RC3, RC4, UL 752, FB4, FB6, or a project-specific blast requirement.
A general request for a “secure door” is not enough to establish the required protection.
3. Review the Complete Opening
The door, frame, locking hardware, glazing, anchorage, and supporting wall must work together. A strong door installed in an inadequate wall or with unsuitable anchorage may not provide the intended level of protection.
4. Confirm the Exact Configuration
Ratings do not automatically transfer to every size, hardware arrangement, glazing option, or installation method. Confirm that the quoted assembly and available supporting documentation satisfy the project requirements.
5. Coordinate the Door With the Surrounding Construction
The surrounding wall should provide protection appropriate for the door and the identified threat. Projects requiring ballistic protection may also need ballistic fiberglass wall panels, protected glazing, seam protection, and carefully designed penetrations.
Frequently Asked Questions
Learn more about the differences between blast resistance, ballistic resistance, and forced-entry protection.
Can an Embassy or Fortress door be used when a blast rating is required?
An Embassy or Fortress door should not be represented as blast resistant unless the exact assembly has been separately evaluated and approved for the project's blast criteria.
If the plans or specifications require a blast-rated opening, consult the project architect, structural engineer, blast consultant, or another qualified professional before selecting a door.
Is a bullet-resistant door also blast resistant?
No. Ballistic testing evaluates resistance to specified firearm threats. Blast testing evaluates how a complete assembly responds to explosive pressure and impulse.
Passing one type of test does not establish compliance with the other.
Is a forced-entry-resistant door bullet resistant?
Not automatically. Forced-entry testing and ballistic testing use different threats and evaluation procedures.
Some Embassy and Fortress configurations can include ballistic protection, but the required ballistic option must be selected and documented as part of the door assembly.
What does FE/5 mean?
FE/5 identifies a forced-entry classification under the applicable U.S. Department of State test procedure. The tested assembly is subjected to the attack methods and tools defined by that standard at the 5-minute resistance level.
The Embassy Series is GSS Doors' FE/5 option.
What does FE/15 mean?
FE/15 identifies a higher forced-entry resistance level under the applicable U.S. Department of State test procedure. The tested assembly is subjected to the attack methods and tools defined by that standard at the 15-minute resistance level.
The Fortress Series is GSS Doors' FE/15 option.
Does a higher ballistic level protect against every lower-level threat?
Not necessarily. Ballistic levels are based on specific ammunition, projectile construction, velocity, and number of shots.
They should not be treated as a simple universal ranking in which every higher number automatically covers every lower-level test. Protection should be selected according to the identified threat and confirmed using the documentation for the proposed assembly.
Can ballistic-resistant glass be included?
Yes. Ballistic-resistant glass is available in select Embassy and Fortress configurations.
The glass, door, frame, and installation details must be coordinated for the selected protection level. A ballistic glass panel alone does not establish the rating of the complete opening.
Does GSS Doors provide ballistic wall protection?
Yes. GSS Doors supplies UL 752 Level 3 and Level 8 bullet-resistant fiberglass wall panels for applicable residential, commercial, safe-room, and high-security projects.
These panels can be concealed behind drywall, millwork, or other architectural finishes when properly installed.
