Security Vault Room Doors

---

Vault-style security with the appearance of a custom architectural door

Protect a private vault room, firearm collection, safe room, panic room, or other secured space without the industrial appearance of a traditional vault door.

---

Our Embassy and Fortress Series doors combine the appearance of a custom architectural door with security features commonly associated with a vault door, including a reinforced door leaf, hardened frame, protected hinges, and high-security 16 bolt multi-point mechanical or electromechanical locking systems. Custom painted, stained, decorative, and flush finishes allow the entrance to complement the surrounding interior.
​​
These doors are not conventional vault doors or commercial safe doors. They are high-end security doors designed to provide forced-entry and optional Ballistic protection while blending naturally into a luxury home or commercial environment.

---

Embassy Security Door Specs

Fortress Security Door Specs

Standard Features of a Vault room Door

Residential Vault Room Doors​

Multi-Point Locking

Decorative Design

Optional UL 752 Level 3 & 8 Rating

Our Embassy and Fortress vault room security doors combine the appearance of a custom door with the reinforced construction and multi-point locking features commonly associated with a traditional vault door.
Standard features include:

• Reinforced steel door leaf and frame

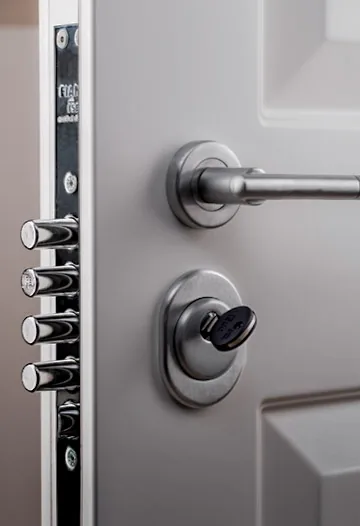

• Armored multi-point locking system with up to 16 locking points
• Drill-resistant lock protection
• High-security, pick- and bump-resistant cylinders
• Protected hinge-side locking points
• Pre-hung door and frame assembly
• In-swing or out-swing configurations
• Custom painted, stained, or decorative finishes
• Mechanical or electromechanical lock options

​These features allow the door to provide substantial forced-entry resistance without the industrial appearance of a conventional vault door.

---

Choose Your Level of Protection

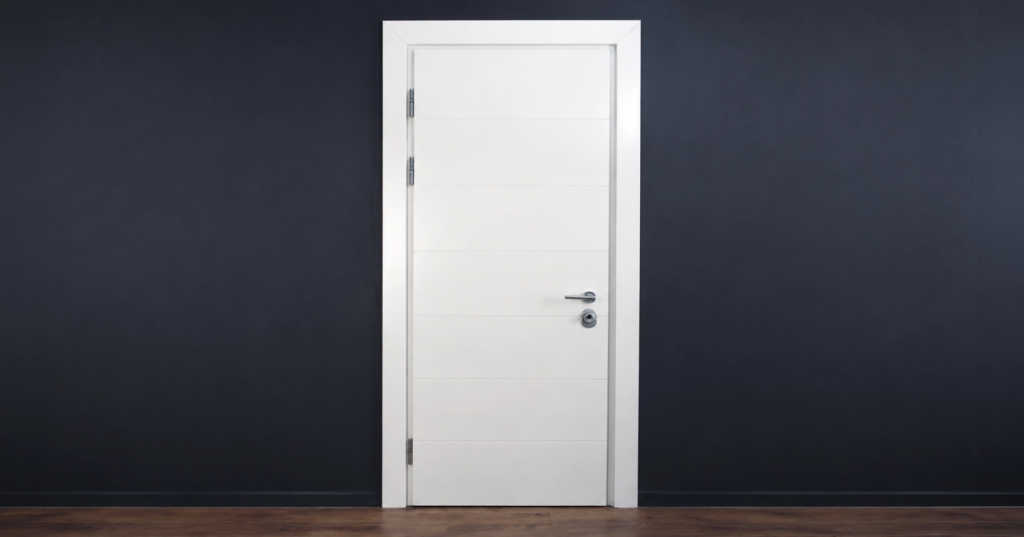

Embassy Series Security Vault Room Door

The Embassy Series is designed for residential vault rooms and other secure spaces where strong forced-entry resistance, refined appearance, and everyday convenience are important.
Its 3-inch-thick door leaf and multi-point locking system provide vault-style security while allowing the door to be customized with decorative finishes, architectural panels, glass, and access-control options.

Recommended for

• Residential vault rooms
• Secure gun room storage
• Safe rooms and panic rooms
• Home offices and document rooms
• Interior security doors
• High value collection rooms

Embassy Series features

• 5-minute forced-entry-rated construction
• 3-inch-thick reinforced door leaf
• Multi-point locking system
• Mechanical 12-point lock option
• ISEO X1R electromechanical lock option
• In-swing or out-swing configurations
• Flush, painted, or decorative finishes
• Optional forced-entry and bullet-resistant glass
• Optional UL 752 Level 3 ballistic protection

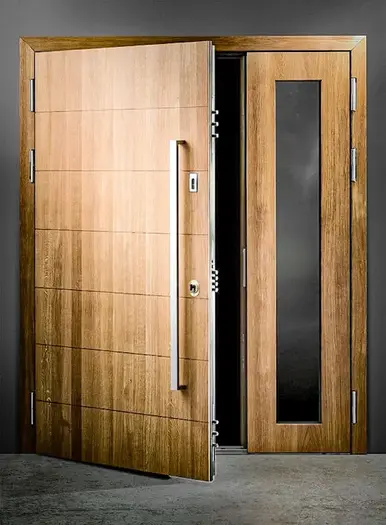

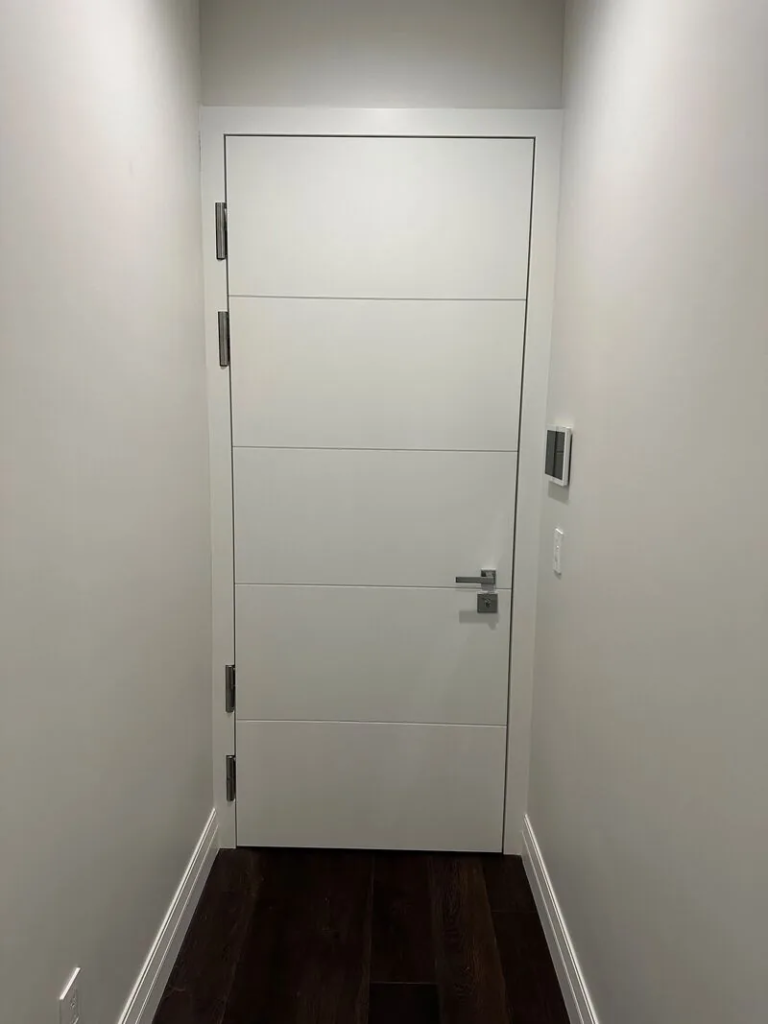

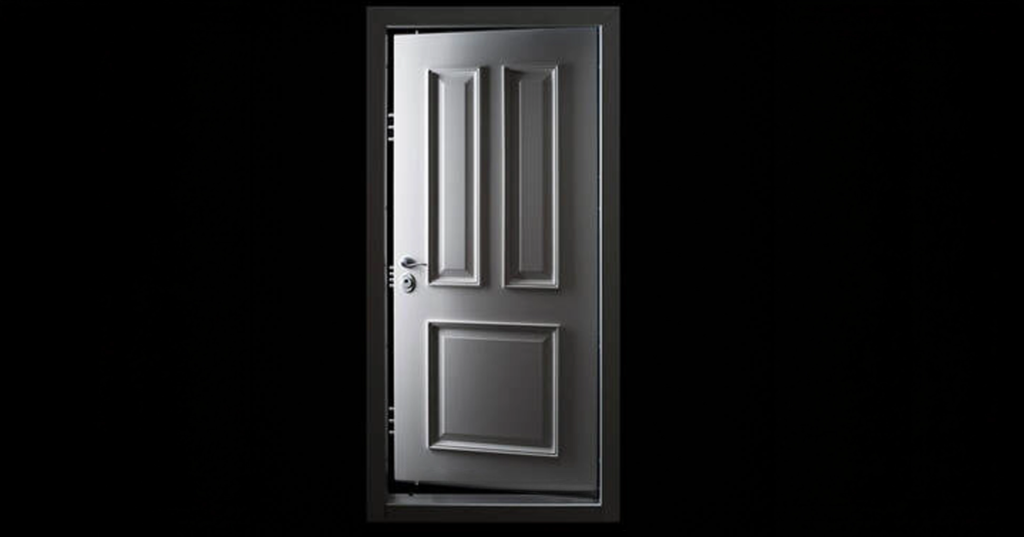

Fortress Series High-Security Vault Room Door

The Fortress Series is intended for vault rooms and secure spaces requiring a higher level of forced-entry and ballistic protection.
It offers the appearance and everyday operation of a custom architectural door while providing heavier security construction, a multi-point locking system, and available ballistic protection up to UL 752 Level 8.

Recommended for

• High-value residential vault rooms
• Executive safe rooms
• Secure firearm and collection rooms
• Jewelry, art, and document storage
• High-threat residential applications
• Commercial security rooms

Fortress Series features

• 15-minute forced-entry-rated construction
• Reinforced door leaf and security frame
• Multi-point locking system
• Mechanical 12-point lock option
• ISEO X1R electromechanical lock option
• In-swing or out-swing configurations
• Decorative, stained, painted, or flush finishes
• Optional forced-entry-resistant glass
• Optional UL 752 Level 3 or Level 8 ballistic protection

---

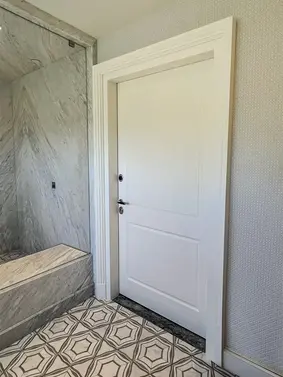

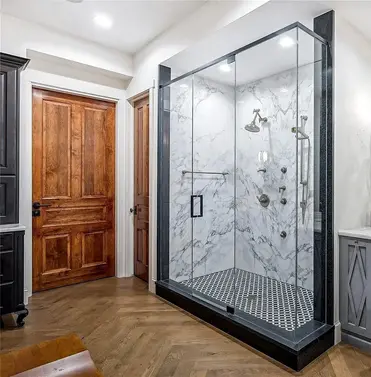

Designed to Match the Home

A secure room entrance does not need to resemble a commercial safe.
Embassy and Fortress doors can be manufactured with:

• Custom paint colors
• Stain-grade wood skins
• Decorative raised or carved panels
• Flush contemporary finishes
• Custom handles
• Interior or exterior configurations
• Designs coordinated with nearby architectural doors

This allows the door to become either a concealed part of the interior or a distinctive entrance to the room.

Mechanical or Keyless Entry

Both series can be equipped with a mechanical multi-point lock or the X1R electromechanical locking system.
With the X1R system, the door can automatically engage its locking bolts when closed. Entry from the public side may be controlled by a high-security key, smartphone, numerical keypad, fingerprint reader, RFID credential, or compatible client-supplied access-control reader.
From the protected side, pressing the interior handle retracts the locking system in a single motion for convenient egress.

---

Complete the Vault Room with Ballistic Wall Protection

Ballistic Fiberglass Wall Panels

A high-security door is only one part of a properly protected room. Conventional wood or metal framed walls may remain vulnerable even when the entrance is reinforced.
GSS Doors can also supply UL 752 level 3 and level 8 ballistic rated fiberglass wall panels to help extend protection around the vault room. The panels are installed over the wall framing and can be covered with conventional interior finishes, allowing the protected wall to maintain the appearance of a standard finished room.
Available options include:

• UL 752 Level 3 panels for handgun protection
• UL 752 Level 8 panels for higher-level rifle protection
• Ballistic batten strips for protecting panel seams
• Standard sheets or custom-cut panels
• Coordination with new or existing wall construction

Learn More About Level 3 Ballistic Wall Panels

Learn More About Level 8 Ballistic Wall Panels

---

Plan Your Vault Room Entrance

Selecting the correct door requires consideration of the room’s intended use, threat level, wall construction, rough opening, swing direction, finish, locking system, and possible ballistic requirements.

​Provide as much of the following information as possible:

• Intended use of the room
• Project shipping ZIP code
• New or existing construction
• Rough-opening dimensions
• Wall construction and thickness
• In-swing or out-swing
• Embassy or Fortress Series
• Mechanical or keyless entry
• Finish preference
• Ballistic-protection requirements

Only basic project information is needed for the initial quote. Additional contact or site details can be provided later if required.

---

GSS Doors

Start Your Security Vault Room Door Quote

Configure an estimate for an Embassy FE/5 Security Vault Room Door or a Fortress FE/15 High-Security Vault Room Door. Select the door configuration, protection options, finish, and hardware preferences to give our team the details needed for a project-specific quote.

Security & high-security vault room options Vault-style multipoint locking Optional ballistic protection & custom finishes

Estimated Total $0 Configured for quote review

Architectural security with vault-style protection. Embassy and Fortress doors combine multipoint locking, tested forced-entry resistance, and optional ballistic protection. Dimensions, swing, finish, glass, hardware, freight, and project-specific requirements are confirmed before final pricing.

1

Project Details

Complete each field so GSS Doors can review the project and follow up with the right questions.

* Required fields

Contact Name *

Contact Email *

Contact Phone *

Project Type * Select project type Homeowner / residence Builder / contractor Architect / designer Security consultant Commercial project

Project Reference / Intended Vault Room Use *

Project ZIP Code or City / State *

Project Timeframe * Select timeframe Planning stage Ready to order soon New construction Remodel / retrofit Time-sensitive project

2

Rough Opening / Measurements

Exact dimensions are not required to begin, but rough opening and wall-construction details help GSS Doors evaluate the vault room door configuration more accurately.

Rough Opening Width

Rough Opening Height

Wall Thickness / Frame Depth

Opening Type Not sure / review later New construction rough opening Existing door replacement Masonry opening Steel frame opening Reinforced or specialty wall opening

Photos for Follow-Up Review Not yet Available if requested later Need help knowing what photos are useful

Drawings for Follow-Up Review Not yet Available if requested later Shop drawings may be needed Field verification may be needed

Measurement Notes

3

Vault Room Door

Embassy FE/5 provides tested forced-entry resistance for residential and commercial vault rooms. Fortress FE/15 adds a higher level of forced-entry resistance for more demanding applications.

Vault Room Door Series Embassy FE/5 - Security Vault Room Door Fortress FE/15 - High-Security Vault Room Door

Door Configuration Single door Double door

Door Height and Width Up to 3'-0" wide x 7'-0" high Up to 3'-0" wide x 8'-0" high

Door Quantity 1 door 2 doors 3 doors 4 doors 5 doors 6 doors 7 doors 8 doors 9 doors 10 doors

Selected Door Base Price $0 per door

Base Door Subtotal $0

Base pricing reflects the selected series, configuration, height, and quantity. Required components and optional upgrades are added in the sections below.

Estimated shipping included: This estimate includes anticipated shipping to the lower 48 states. Shipping is available to Alaska, Hawaii, and Canada, but shipping costs to those destinations are excluded and will be quoted separately.

Vault Room Application No price change Security vault room High-security vault room Safe room / panic room High-value storage room Secure residential room Commercial secure room Interior secure doorway Exterior secure doorway Other / review

Door Swing No price change Not sure / review later Left hand inswing Right hand inswing Left hand outswing Right hand outswing

Door Handing Guide Viewed from above. Match the hinge side and the direction the door opens.

LH Left Hand Inswing RH Right Hand Inswing LHR Left Hand Outswing RHR Right Hand Outswing

Select the matching diagram to update the Door Swing field. Final handing will be confirmed before manufacturing.

Measurement Status No price change Approximate only Rough opening measured Drawings available for later review Field verification may be needed

4

Required Components

Choose the locking system, door panels, hardware finish, and handle style for the vault room door estimate. Final hardware compatibility and availability will be confirmed during quote review.

Lock Type Mechanical lock - $800 Fiam X1R electromechanical lock with keypad - $4,925 Door Panel Selection Painted steel panels - $950 Paint grade Tricoya flush panel - $1,750 Paint grade Tricoya raised panel design - $3,050

Tall door Tricoya panel upgrade - $500

Hardware Finish Standard hardware finish - included Black or oil-rubbed bronze hardware finish - $275 To be reviewed - quoted if needed

Handle Style Preference Not sure / review during quote - included in handle selection Rhodes ER28 - Cosmos Black - included in handle selection Rhodes ER28 - Satin Stainless Steel - included in handle selection Rhodes EPL28 - Polished Stainless Steel - included in handle selection Madeira ER45 - Oil-Rubbed Bronze - included in handle selection Madeira ER45Q - Oil-Rubbed Bronze - included in handle selection Madeira ER45Q - Cosmos Black - included in handle selection Madeira ER45 - Cosmos Black - included in handle selection Madeira ER45 - Satin Stainless Steel - included in handle selection Montana ER54 - Satin Stainless Steel - included in handle selection Montana ER54 - Cosmos Black - included in handle selection Corfu ER24 - Satin Stainless Steel - included in handle selection Corfu ER24 - Cosmos Black - included in handle selection

Select a handle style from the dropdown to preview it. Final compatibility and availability will be confirmed during quote review.

Select a handle style to preview it here.

Need to match surrounding architectural hardware? We may be able to recreate a similar handle style for review. Door knobs are not available on these security vault room doors.

5

Security Performance & Access Options

Ballistic Protection Option None selected - $0 UL 752 Level 3 option - $2,600 UL 752 Level 8 option - $5,500

Ballistic Trim Option None - $0 Add Level 3 ballistic trim - $850 Add Level 8 ballistic trim - $850

Select the trim level that matches the chosen ballistic protection package.

Vault Room Security Viewer None - $0 Level 3 vault room security viewer - $615 Level 8 vault room security viewer - $750

Door Closer None / not selected - $0 Concealed closer with hold-open - $1,550 Surface mounted door closer - $1,075

Optional Drop-Down Seal None - $0 Add drop-down seal - $200

Fire Construction Option Standard construction - $0 90-minute fire construction - not certified or labeled - $1,100

This option uses 90-minute fire-resistance construction but is not independently certified, listed, or labeled as a fire-rated opening. Project requirements should be confirmed with the authority having jurisdiction.

Access Control Electromechanical lock only None / review later - $0 ISEO Multi-Reader - $2,250

Choose the Fiam X1R electromechanical lock before selecting the ISEO Multi-Reader access option.

Custom Frame Depth Review None - $0 Custom cut frame depth - $375

Standard frame depth is 4 inches for the Embassy Series and 4.5 inches for the Fortress Series. Select the custom frame depth option only when the project requires a different depth.

Thicker Paint Grade Skin Upgrade None - $0 18mm (3/4-inch) paint grade skin for deeper carvings - $525

This thicker skin is primarily used for deeper carvings and added design relief. It is not intended to increase the door strength or security rating.

6

Design / Finish Options

Design, finish, and glass details will be reviewed by GSS Doors before the final quote is prepared.

Door Design Notes

Choose a Door Carving Design Price confirmed during quote review

Selected: No carving

Scroll sideways and select a standard R-series carving. Deeper carving designs may require the 18mm paint-grade skin upgrade.

No carving Custom drawing Match existing Not sure

Find a Carving Number

Carving Range Show all carvings R1 - R54 R55 - R108 R109 - R162 R163 - R216

Showing all 216 standard carvings. Scroll sideways and select any image to use it.

Door Milling Style Price confirmed during quote review

No milling / flush Milling Type 5F Milling Type 10F Milling Type VF Milling Type DF Milling Type AF Milling Type MF Milling Type MF + Baguettes Milling Type Victoria Milling Type 3D Match an existing door / reference image Custom milling design Not sure / review with GSS Doors

Milling compatibility and pricing depend on the decorative panel design, door size, and design depth.

Select a milling style to preview it here.

Metal Frame / Steel Panel Powder-Coat Color Price confirmed during quote review

Not sure / review with GSS Doors RAL 1013 RAL 5010 RAL 5012 RAL 5015 RAL 7012 RAL 7016 RAL 7021 RAL 7030 RAL 7032 RAL 7035 RAL 7038 RAL 8014 RAL 8019 RAL 9001 RAL 9002 RAL 9003 RAL 9005 RAL 9010 RAL 9011 Custom RAL color Primed for field finishing Custom Color / Finish Notes

On-screen colors are approximate. Final color should be confirmed using an official RAL sample.

Select a RAL color to preview it here.

Vault Room Security Glass Notes Custom Notes

7

Estimate Summary

Review the vault room door estimate below, then send your project to GSS Doors for final quote review.

$0

Review details that will be sent

What Happens Next

1. GSS Doors reviews the intended vault room use and selected protection level.
2. We confirm dimensions, wall construction, swing, finish, glass, locking system, and door configuration.
3. A final security vault room door quote is prepared for your review and approval.

Project note: Please leave confidential security details out of this initial request. We will collect them separately if needed.

Leave this field empty

Send My Vault Room Door Project Copy Project Details Print / Save Summary

---
